PRODUCTS

PRODUCT RANGE

SELF DRILLING SCREWS
Specification DIN7504K/P/N, AS3566.1, JIS, IFI
Head Type Pan, CSK Flat, Hex. Washer, Wafer, Bugle & etc.
Diameter #6 ~ #14 (M3.5~M6.3)
Length 3/8"~6" (9.5mm~150mm)
Thread Type Type BSD, CSD
Coating Zinc Plated, Zinc Yellow Plated, Mechanical Zinc Plated & Nickel Plated
Material Grade Carbon Steel SAE 1022
SELF TAPPING SCREWS
Specification DIN 7981/7982/7983/6928, IFI, JIS
Head Type Pan, CSK Flat, Hex. Washer, Raised CSK
Diameter #4~#14 (M2.9~M6.3)
Length 1/4"~6" (6.5mm~150mm)
Thread Type Type A/B/AB
Coating Zinc Plated, Zinc Yellow Plated, Mechanical Zinc Plated & Nickel Plated
Material Grade Carbon Steel SAE 1022
ROOFING & DECKING TYPE-17 SCREWS
Specification AS, IFI
Head Type Hexagon Washer, Hexagon Flange, Bugle
Diameter #10 ~ #14 (M4.8~M6.3)
Length 5/8"~6" (16mm~150mm)
Thread Type Type BSD, Coarse
Coating Zinc Plated, Zinc Yellow Plated, Mechanical Zinc Plated
Material Grade Carbon Steel SAE 1022
MECHANICAL ZINC SELF DRILLING & TYPE-17 SCREWS
Specification DIN7504K/P/N, AS3566.1, JIS, IFI
Head Type Hexagon Washer, Hexagon Flange, Bugle
Diameter #6 ~ #14 (M3.5~M6.3)
Length 3/8"~6" (9.5mm~150mm)
Thread Type Type BSD, Type CSD, Coarse
Coating Mechanical Zinc Plated Class 2, 3 & 4
Material Grade Carbon Steel SAE 1022
MACHINE SCREWS
Specification DIN 7985/965/966, IFI, JIS
Head Type Pan, CSK Flat, Oval, Cheese
Diameter M3~M6
Length 6.5mm~100mm
Thread Type Machine
Coating Zinc Plated, Zinc Yellow Plated,
Material Grade Carbon Steel SAE 1022
DRYWALL SCREWS
Specification DIN, IFI, ANSI/ASTM
Head Type Bugle
Diameter #6~#12 (M3.5~M5.5)
Length 5/8"~6" (16mm~150mm)
Thread Type Fine, Coarse
Coating Zinc Plated, Zinc Yellow Plated, Grey Phosphated, Mechanical Zinc Plated
Material Grade Carbon Steel SAE 1022
STAINLESS STEEL SCREWS
Specification DIN, IFI, JIS, ANSI/ASTM
Head Type Pan, CSK Flat, Hex. Washer, Raised CSK & etc.
Diameter #6~#14 (M3.5~M6.3)
Length 1/4"~6" (6.5mm~150mm)
Coating Passivated
Material Grade SS302, SS304, SS316 & SS410
CHIPBOARD SCREWS
Specification DIN, IFI, ANSI/ASTM
Head Type CSK Flat Head & Pan Head
Diameter #6~#12 (M3.5~M5.5)
Length 5/8"~6" (16mm~150mm)
Thread Type Fine, Coarse
Coating Zinc Plated, Zinc Yellow Plated, Grey Phosphated, Mechanical Zinc Plated
Material Grade Carbon Steel SAE 1022

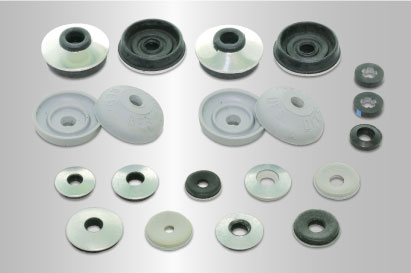

VARIOUS TYPES OF WASHER AVAILABLE FOR ROOFING SCREWS
Specification AS/NZS, ASTM/ANSI, ISO
Seal Type EPDM, Non-conductive EPDM, PVC
Bonded Type Aluminium, Galvanised Steel , Stainless Steel
Inner Diameter #10~#14 (M4.8~M6.3)
Outer Diameter 12mm~32mm

The Manufacturing Of Screws And Fasteners.
